Rackmount Enclosures


 For additional information on each product, contact PDE Technology today.



  Rackmount Enclosures Specs: Rackmount 1U to 2U Enclosures 1U to 2U | Rackmount 1U to 2U Enclosures 1U Mini-SAS I/O | Rackmount 2U to 4U Enclosures 2U to 4U | Rackmount 2U 9HDD Enclosures 2U 9HDD
R1U

R1U - 4 x 3.5" FIXED

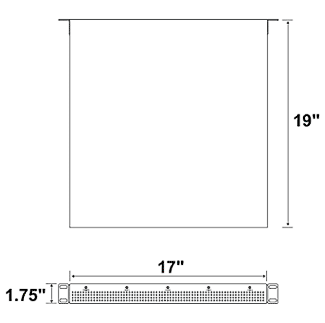

Rackmount 1U Fixed Enclosures
Rackmount 1U fixed for network storage enclosures. Rackmount R1U fixed enclosures, back view


1U Rackmount Network Storage Enclosures, 4 x 3.5" HDD, Fixed Rackmount 1U to 2U Enclosures

 Part Number  11-0303
 Weight  19.75 lbs
 Power Supply Unit  MPW-6200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  40 x 40 x 20
 CFM  7-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  4
 ID Slot  0
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
R1U - 4 x 3.5" REM

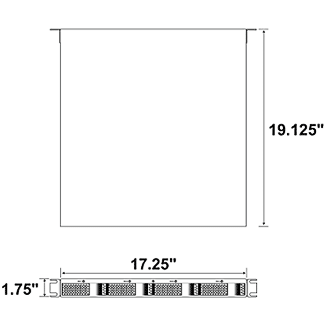

R1U REM Rackmount Enclosures
R1U REM rackmount network storage enclosures R1U REM rackmount network storage enclosures BACK


1U Rackmount eSATA Network Storage Enclosures, 4 x 3.5" HDD, REM Rackmount 1U to 2U Enclosures

 Part Number  11-0512
 Weight  22.75 lbs
 Power Supply Unit  MPW-6200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  40 x 40 x 20
 CFM  7-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  4
 ID Slot  0
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
Rackmount R1U REM Enclosures
 1U Rackmount ML SATA Network Storage Enclosures, 4 x 3.5" HDD, REM Rackmount 1U to 2U Enclosures
 Part Number  11-0513
 Weight  22.75 lbs
 Power Supply Unit  MPW-6200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  40 x 40 x 20
 CFM  7-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  4
 ID Slot  0
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
Rackmount R1U REM SATA to mini-SAS Enclosures
 1U Rackmount Mini-SAS Network Storage Enclosures, 4 x 3.5" HDD, REM Rackmount 1U to 2U Enclosures
 Part Number  11-0513-MS, 11-0513-MS-LT (Locking Drive Trays)
 Weight  22.75 lbs
 PSU WATTS  200W
 DC Fan Dimension  40 x 40 x 20
 CFM  7-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  4
 ID Slot  0
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
Rackmount R1U REM Enclosures
 1U Rackmount SCSI Network Storage Enclosures, 4 x 3.5" HDD, REM Rackmount 1U to 2U Enclosures
 Part Number  11-0514
 Weight  22.75 lbs
 Power Supply Unit  MPW-6200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  40 x 40 x 20
 CFM  7-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  4
 ID Slot  0
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
Rackmount R1U REM Enclosures back view
 1U Rackmount FC Network Storage Enclosures, 4 x 3.5" HDD, REM Rackmount 1U to 2U Enclosures
 Part Number  11-0515
 Weight  22.75 lbs
 Power Supply Unit  MPW-6200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  40 x 40 x 20
 CFM  7-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  4
 ID Slot  0
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
Rackmount R1U REM Enclosures
 1U Rackmount FO Network Storage Enclosures, 4 x 3.5" HDD, REM Rackmount 1U to 2U Enclosures
 Part Number  11-0517
 Weight  22.75 lbs
 Power Supply Unit  MPW-6200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  40 x 40 x 20
 CFM  7-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  4
 ID Slot  0
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
Rackmount R1U Enclosures
 1U Rackmount SAS Network Storage Enclosures, 4 x 3.5" HDD, REM Rackmount 1U to 2U Enclosures
 Part Number  11-0555
 Weight  22.75 lbs
 Power Supply Unit  MPW-6200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  40 x 40 x 20
 CFM  7-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  4
 ID Slot  0
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
R1U - 2 TAPE 5.25"


R1U TAPE rackmount in network storage enclosures
R1U Tape Rackmount Enclosures FRONT R1U Tape Rackmount Enclosures BACK
 1U Rackmount Network Storage Enclosures, 2 x 5.25" Open Bay, R1U2DRV 1U to 2U Rackmount Enclosures
 Part Number  11-0302
 Weight  15.5 lbs
 Power Supply Unit  A65A1-02M or Equivalent
 PSU WATTS  65W
 DC Fan Dimension  40 x 40 x 20
 CFM  6-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  3
 ID Slot  2
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
Network storage of R1U rackmount TAPE enclosures
 1U Rackmount Network Storage Enclosures, 2 x 5.25" Open Bay, 100W Rackmount 1U to 2U Enclosures
 Part Number  11-0550
 Weight  15.5 lbs
 Power Supply Unit  PRO100-3 or Equivalent
 PSU WATTS  100W
 DC Fan Dimension  40 x 40 x 20
 CFM  7-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  3
 ID Slot  2
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
Rackmount R1U TAPE Enclosures FRONT Rackmount R1U TAPE Enclosures BACK
 1U Rackmount Network Storage Enclosures, 1 x 5.25" Open Bay Rackmount 1U to 2U Enclosures
 Part Number  11-0301
 Weight  15.5 lbs
 Power Supply Unit  A65A1-02M or Equivalent
 PSU WATTS  65W
 DC Fan Dimension  40 x 40 x 20
 CFM  6-8
 Fan Quantity  3
 I / O CUTOUTS
 Slot (C50)  3
 ID Slot  2
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
R2U

R2U6 - 6 x 5.25" BAYS

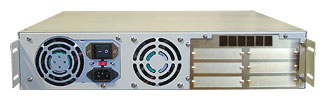

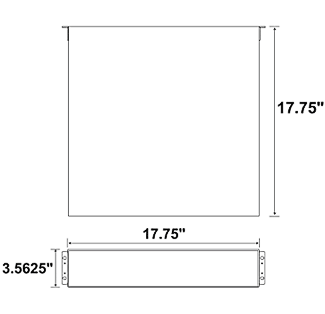

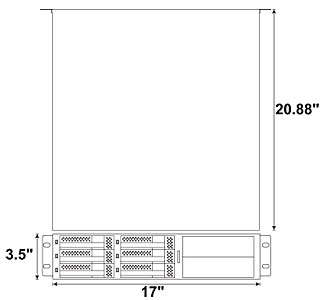

Rackmount R2U6 BAYS CAD Enclosures
Rackmount R2U FRONT BAYS for network storage enclosures Rackmount R2U BACK BAYS for network storage enclosures
 R 2U-6 CD/DVD/5.25" Drives Network Storage Enclosures, Beige Only Rackmount 2U to 4U Enclosures
 Part Number  11-1154
 Weight  19.8 lbs
 Power Supply Unit  LP2-4200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  80 x 80 x 25
 CFM  33
 Fan Quantity  1
 I / O CUTOUTS
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Rail Bracket  4
 Power Cord  1

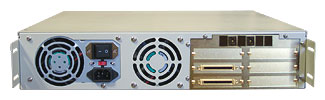

Rackmount R2U BACK BAYS Enclosures
 R 2U-6 SCSI For 3 DLT'S Network Storage Enclosures, Beige Only Rackmount 2U to 4U Enclosures
 Part Number  11-1167
 Weight  19.8 lbs
 Power Supply Unit  LP2-4200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  80 x 80 x 25
 CFM  31, 33, 37
 Fan Quantity  1
 I / O CUTOUTS
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Rail Bracket  4
 Power Cord  1

 R 2U-6 SCSI For 2 DLT'S Network Storage Enclosures, Beige Only Rackmount 2U to 4U Enclosures
 Part Number  11-1181
 Weight  19.8 lbs
 Power Supply Unit  LP2-4200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  80 x 80 x 25
 CFM  31, 33, 37
 Fan Quantity  1
 I / O CUTOUTS
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Rail Bracket  4
 Power Cord  1

 R 2U-6 SCSI For 1 DLT'S Network Storage Enclosures, Beige Only Rackmount 2U to 4U Enclosures
 Part Number  11-1184
 Weight  19.8 lbs
 Power Supply Unit  LP2-4200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  80 x 80 x 25
 CFM  31, 33, 37
 Fan Quantity  1
 I / O CUTOUTS
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Rail Bracket  4
 Power Cord  1
Rackmount for R2U BAYS Enclosures Rackmount R2U Enclosures
 2U BLK Rackmount Enclosure 2 DLT SCSI, No Rail Rackmount 2U to 4U Enclosures
 Part Number  11-0294
 Weight  19.8 lbs
 Power Supply Unit  LP2-4200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  80 x 80 x 25
 CFM  31, 33, 37
 Fan Quantity  1
 I / O CUTOUTS
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Rail Bracket  4
 Power Cord  1
R2U - 2 TAPE 5.25"

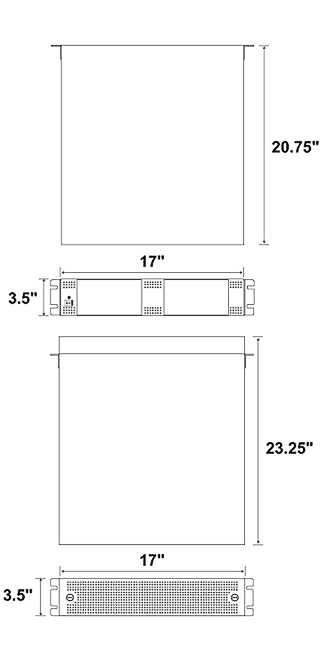

Rackmount R2U TAPE CAD Enclosures
Rackmount R2U Enclosures TAPE FRONT Rackmount R2U Enclosures TAPE BACK
 2U 2 FH 5.25" Bay SCSI RM ENCL Network Storage Enclosures Rackmount 2U to 4U Enclosures
 Part Number  11-0330
 Weight  23.2 lbs
 Power Supply Unit  LP2-4200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  80 x 80 x 25
 CFM  35, 39
 Fan Quantity  1
 I / O CUTOUTS
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
Rackmount R2U FRONT TAPE Enclosures Rackmount R2U BACK TAPE Enclosures
 2U 2 FH 5.25" Bay SCSI RM ENCL Network Storage Red Power 2U to 4U Rackmount Enclosures
 Part Number  11-0522
 Weight  23.2 lbs
 Power Supply Unit  MR2-4250F or Equivalent
 PSU WATTS  250W
 DC Fan Dimension  80 x 80 x 25
 CFM  35, 39
 Fan Quantity  1
 I / O CUTOUTS
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1

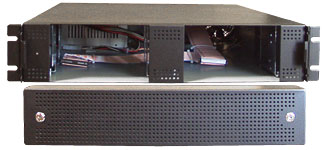

Rackmount R2U FRONT TAPE Enclosures Rackmount R2U BACK TAPE Enclosures

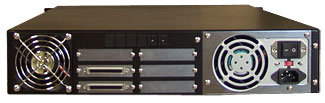

 2U Rackmount 2 Bay with Locking Door Network Storage Enclosures Rackmount 2U to 4U Enclosures
 Part Number  11-0565
 Weight  23.2 lbs
 Power Supply Unit  LP2-4200F or Equivalent
 PSU WATTS  200W
 DC Fan Dimension  80 x 80 x 25
 CFM  35, 39
 Fan Quantity  1
 I / O CUTOUTS
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Rail Bracket  2
 Power Cord  1
R2U - 6HDD, 2 x 5.25" BAYS

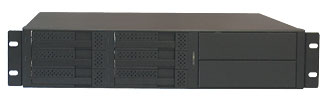

Rackmount R2U 6HDD 2 BAYS Enclosures
Rackmount R2U 6HDD 2 BAYS in Enclosures Rackmount R2U 6HDD 2 BAYS BACK Enclosures

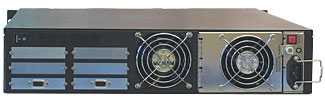

 2U 6FCHDD, 2x5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-0202
 Weight  28.65 lbs
 Brand  Zippy
 Model#  MR2-4250F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 250=500W
 5V (ind.)  25A
 12V (ind.)  10A
 5V (total)  50A
 12V (total)  20A
 PS Fans  1
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  1
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9
 SCSI (HD68)
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  1

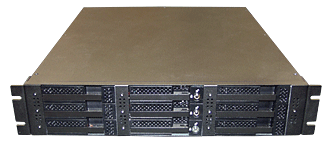

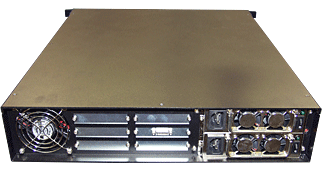

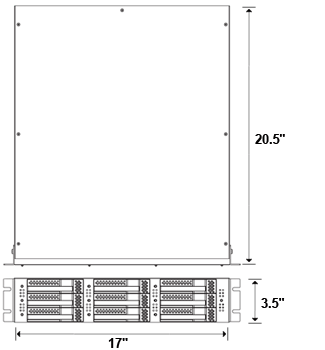

 2U 9FCHDD, 2 x 5.25" BAY Rackmount Enclosure Network Storage Black 2U to 4U Rackmount Enclosures
 Part Number  11-0205
 Weight  28.65 lbs
 Brand  Zippy
 Model#  MR2-4250F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 250=500W
 5V (ind.)  25A
 12V (ind.)  10A
 5V (total)  50A
 12V (total)  20A
 PS Fans  1
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  1
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9
 SCSI (HD68)
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  1

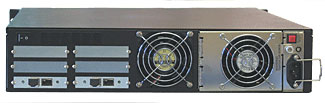

Rackmount R2U 6HDD 2 BAYS Enclosures
 2U 6FCHDD, 2 x 5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-0202-OP
 Weight  28.65 lbs
 Brand  Zippy
 Model#  MR2-4250F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 250=500W
 5V (ind.)  25A
 12V (ind.)  10A
 5V (total)  50A
 12V (total)  20A
 PS Fans  1
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  1
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9
 SCSI (HD68)
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  1

 2U 9FCHDD, 2 x 5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-0205-OP
 Weight  28.65 lbs
 Brand  Zippy
 Model#  MR2-4250F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 250=500W
 5V (ind.)  25A
 12V (ind.)  10A
 5V (total)  50A
 12V (total)  20A
 PS Fans  1
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  1
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9
 SCSI (HD68)
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  1
Rackmount R2U 6HDD 2 BAYS Enclosures
 2U 6SATAHDD, 2 x 5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures

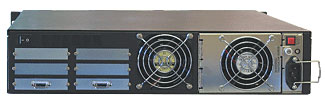

 Part Number  11-0206
 Weight  28.65 lbs
 Brand  Zippy
 Model#  MR2-4250F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 250=500W
 5V (ind.)  25A
 12V (ind.)  10A
 5V (total)  50A
 12V (total)  20A
 PS Fans  1
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  1
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9
 SCSI (HD68)
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  1
Rackmount R2U 6HDD Enclosures
 2U 6ATAHDD, 2 x 5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-0200
 Weight  28.65 lbs
 Brand  Zippy
 Model#  MR2-4250F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 250=500W
 5V (ind.)  25A
 12V (ind.)  10A
 5V (total)  50A
 12V (total)  20A
 PS Fans  1
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  1
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9
 SCSI (HD68)
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  1

 2U 6SCSIHDD, 2 x 5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures

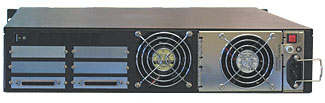

 Part Number  11-0201
 Weight  28.65 lbs
 Brand  Zippy
 Model#  MR2-4250F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 250=500W
 5V (ind.)  25A
 12V (ind.)  10A
 5V (total)  50A
 12V (total)  20A
 PS Fans  1
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  1
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9
 SCSI (HD68)
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  1

 2U 9ATAHDD, 2 x 5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-0203
 Weight  28.65 lbs
 Brand  Zippy
 Model#  MR2-4250F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 250=500W
 5V (ind.)  25A
 12V (ind.)  10A
 5V (total)  50A
 12V (total)  20A
 PS Fans  1
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  1
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9
 SCSI (HD68)
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  1

 2U 9SCSIHDD, 2 x 5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-0204
 Weight  28.65 lbs
 Brand  Zippy
 Model#  MR2-4250F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 250=500W
 5V (ind.)  25A
 12V (ind.)  10A
 5V (total)  50A
 12V (total)  20A
 PS Fans  1
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  1
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9
 SCSI (HD68)
 Slot (C50)  6
 ID Slot  6
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  1
R2U - 9HDD


Rackmount R2U Enclosures 6HDD 2 BAYS
Rackmount 2U 9HDD EnclosuresRackmount 2U 9HDD Enclosures Back
 2U 9SATAHDD Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-0670
 Weight  29.7 lbs
 Brand  Zippy
 Model#  MRW-6400P or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 400=800W
 5V (ind.)  35A
 12V (ind.)  28A
 5V (total)  70A
 12V (total)  56A
 PS Fans  2 (each Power Supply)
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HB-F71
 Qty  1
 Size  1.49"L x 3.169"W x 3.169"H
 CFM  53.6
 I / O CUTOUTS
 VHDCI Can be configured
 SCSI (HD68) Can be configured
 Slot (C50)  6
 Multilane  Can be configured
 DB9  Can be configured
 LC  Can be configured
 Hardware and Accessories
 Drive Mounting Screw  4
 Rail Bracket Set  2
 Power Cord  2

 2U 9SASHDD Rackmount Enclosure Network Storage Black 2U to 4U rackmount Enclosures
 Part Number  11-0671
 Weight  29.7 lbs
 Brand  Zippy
 Model#  MRW-6400P or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 400=800W
 5V (ind.)  35A
 12V (ind.)  28A
 5V (total)  70A
 12V (total)  56A
 PS Fans  2 (each Power Supply)
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HB-F71
 Qty  1
 Size  1.49"L x 3.169"W x 3.169"H
 CFM  53.6
 I / O CUTOUTS
 VHDCI Can be configured
 SCSI (HD68) Can be configured
 Slot (C50)  6
 Multilane  Can be configured
 DB9  Can be configured
 LC  Can be configured
 Hardware and Accessories
 Drive Mounting Screw  4
 Rail Bracket Set  2
 Power Cord  2

 2U 9SCSIHDD Rackmount Enclosure Network Storage Black 2U to 4U rackmount Enclosures
 Part Number  11-0672
 Weight  29.7 lbs
 Brand  Zippy
 Model#  MRW-6400P or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 400=800W
 5V (ind.)  35A
 12V (ind.)  28A
 5V (total)  70A
 12V (total)  56A
 PS Fans  2 (each Power Supply)
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HB-F71
 Qty  1
 Size  1.49"L x 3.169"W x 3.169"H
 CFM  53.6
 I / O CUTOUTS
 VHDCI Can be configured
 SCSI (HD68) Can be configured
 Slot (C50)  6
 Multilane  Can be configured
 DB9  Can be configured
 LC  Can be configured
 Hardware and Accessories
 Drive Mounting Screw  4
 Rail Bracket Set  2
 Power Cord  2

 2U 9FCHDD Rackmount Enclosure Network Storage Black 2U to 4U rackmount Enclosures
 Part Number  11-0673
 Weight  29.7 lbs
 Brand  Zippy
 Model#  MRW-6400P or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 400=800W
 5V (ind.)  35A
 12V (ind.)  28A
 5V (total)  70A
 12V (total)  56A
 PS Fans  2 (each Power Supply)
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HB-F71
 Qty  1
 Size  1.49"L x 3.169"W x 3.169"H
 CFM  53.6
 I / O CUTOUTS
 VHDCI Can be configured
 SCSI (HD68) Can be configured
 Slot (C50)  6
 Multilane  Can be configured
 DB9  Can be configured
 LC  Can be configured
 Hardware and Accessories
 Drive Mounting Screw  4
 Rail Bracket Set  2
 Power Cord  2

 2U 9FOHDD Rackmount Enclosure Network Storage Black 2U to 4U rackmount Enclosures
 Part Number  11-0674
 Weight  29.7 lbs
 Brand  Zippy
 Model#  MRW-6400P or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 400=800W
 5V (ind.)  35A
 12V (ind.)  28A
 5V (total)  70A
 12V (total)  56A
 PS Fans  2 (each Power Supply)
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HB-F71
 Qty  1
 Size  1.49"L x 3.169"W x 3.169"H
 CFM  53.6
 I / O CUTOUTS
 VHDCI Can be configured
 SCSI (HD68) Can be configured
 Slot (C50)  6
 Multilane  Can be configured
 DB9  Can be configured
 LC  Can be configured
 Hardware and Accessories
 Drive Mounting Screw  4
 Rail Bracket Set  2
 Power Cord  2
R3U

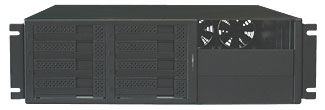

R3U - 8HDD, 3 x 5.25" BAYS

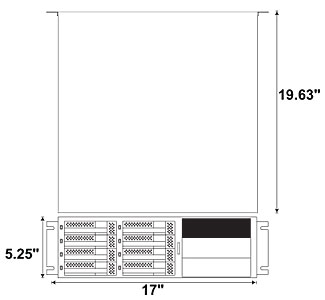

Rackmount R3U 8HDD Enclosures
Rackmount R3U 8HDD Enclosures Rackmount R3U 8HDD Enclosures
 3U 11FCHDD, 1x5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-1125
 Weight  36.8 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Sunon
 Model#  KD-1206PTB1
 Qty  2
 Size  60x60x25
 CFM  23.5
 I / O CUTOUTS
 DB9
 SCSI (HD68)  2
 Slot (C50)  6
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

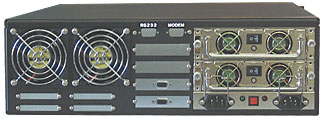

 3U 8FCHDD, 3x5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-1175
 Weight  36.8 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Sunon
 Model#  KD-1206PTB1
 Qty  2
 Size  60x60x25
 CFM  23.5
 I / O CUTOUTS
 DB9
 SCSI (HD68)  2
 Slot (C50)  6
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2
Rackmount R3U 8HDD Enclosures
 3U 11FCHDD, 1x5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-1125-OP
 Weight  36.8 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Sunon
 Model#  KD-1206PTB1
 Qty  2
 Size  60x60x25
 CFM  23.5
 I / O CUTOUTS
 DB9
 SCSI (HD68)  2
 Slot (C50)  6
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 3U 8FCHDD, 3x5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures

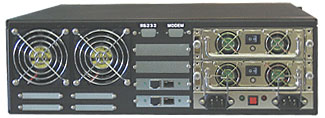

 Part Number  11-1175-OP
 Weight  36.8 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Sunon
 Model#  KD-1206PTB1
 Qty  2
 Size  60x60x25
 CFM  23.5
 I / O CUTOUTS
 DB9
 SCSI (HD68)  2
 Slot (C50)  6
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2
Rackmount R3U 8HDD Enclosures

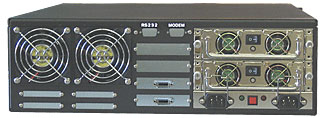

 3U 8SATAHDD, 3x5.25" BAY Rackmount Network Storage Enclosure Rackmount 2U to 4U Enclosures
 Part Number  11-0208
 Weight  36.8 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Sunon
 Model#  KD-1206PTB1
 Qty  2
 Size  60x60x25
 CFM  23.5
 I / O CUTOUTS
 DB9
 SCSI (HD68)  2
 Slot (C50)  6
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2
Rackmount R3U 8HDD Enclosures
 3U 8SCSIHDD, 3x5.25" BAY Rackmount Enclosure 2 Channel with Tag Black IDS Jumpered Rackmount 2U to 4U Enclosures
 Part Number  11-0209
 Weight  36.8 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Sunon
 Model#  KD-1206PTB1
 Qty  2
 Size  60x60x25
 CFM  23.5
 I / O CUTOUTS
 DB9
 SCSI (HD68)  2
 Slot (C50)  6
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 3U 8ATAHDD, 3x5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures

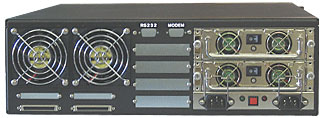

 Part Number  11-1122
 Weight  36.8 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Sunon
 Model#  KD-1206PTB1
 Qty  2
 Size  60x60x25
 CFM  23.5
 I / O CUTOUTS
 DB9
 SCSI (HD68)  2
 Slot (C50)  6
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 3U 8SCSIHDD, 3x5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-1123
 Weight  36.8 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Sunon
 Model#  KD-1206PTB1
 Qty  2
 Size  60x60x25
 CFM  23.5
 I / O CUTOUTS
 DB9
 SCSI (HD68)  2
 Slot (C50)  6
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 3U 11SCSIHDD, 1x5.25" BAY Rackmount Enclosure Network Storage Black Rackmount 2U to 4U Enclosures
 Part Number  11-1124
 Weight  36.8 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Sunon
 Model#  KD-1206PTB1
 Qty  2
 Size  60x60x25
 CFM  23.5
 I / O CUTOUTS
 DB9
 SCSI (HD68)  2
 Slot (C50)  6
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

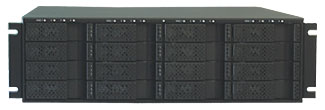

R3U16 16HDD


Rackmount R3U 16HDD Enclosures
Rackmount R3U 16HDD Enclosures Rackmount R3U16 16HDD Enclosures

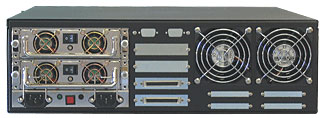

 3U 16 Drive SCSI Rackmount Network Storage Enclosure Rackmount 2U to 4U Enclosures
 Part Number  11-0224
 Weight  50.65 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  2
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2
Rackmount R3U16 16HDD Enclosures

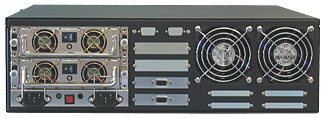

 3U 16 Drive FC Rackmount Network Storage Enclosure Rackmount 2U to 4U Enclosures
 Part Number  11-0225
 Weight  50.65 lbs
 Brand  Zippy
 Model#  MNP2-6300F or Equivalent
 Power Supply Quantity  2
 PSU WATTS  2 x 300=600W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  50A
 12V (total)  34A
 PS Fans  4
 Alarms  Yes
 Cooling Fans
 Brand  Adda
 Model#  AD0812HBA73GL
 Qty  2
 Size  80x80x25
 CFM  38.6
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

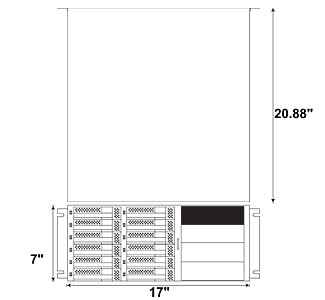

R4U

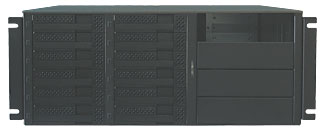

R4U 12HDD, 4 x 5.25" BAYS


Rackmount R4U Enclosures 12HDD 4 BAYS
Rackmount R4U 12HDD 4 BAYS Enclosures Rackmount R4U 12HDD 4 BAYS Enclosures BACK

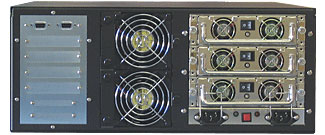

 4U 12FCHDD, 4 x 5.25" BAY Rackmount Network Storage Enclosure Black Rackmount 2U to 4U Enclosures
 Part Number  11-1189
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 4U 15FCHDD, 4 x 5.25" BAY Rackmount Network Storage Enclosure Black Rackmount 2U to 4U Enclosures
 Part Number  11-1192
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2
Rackmount R4U 12HDD 4 BAYS Enclosures

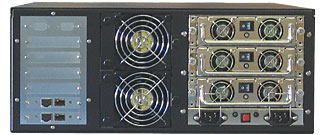

 4U 12FCHDD, 4 x 5.25" BAY Rackmount Network Storage Enclosure Black Rackmount 2U to 4U Enclosures
 Part Number  11-1189-OP
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 4U 15FCHDD, 4 x 5.25" BAY Rackmount Network Storage Enclosure Black Rackmount 2U to 4U Enclosures
 Part Number  11-1192-OP
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2
Rackmount R4U 12HDD 4 BAY Enclosures

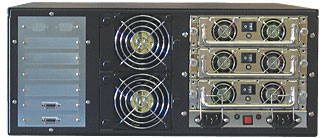

 4U 12SATAHDD, 4 x 5.25" BAY Rackmount Network Storage Enclosure Black Rackmount 2U to 4U Enclosures
 Part Number  11-0258
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2
Rackmount R4U 12HDD BAY Enclosures
 4U 18SCSIHDD, Dual Channel Rackmount Enclosure Black IDS Jumpered Rackmount 2U to 4U Enclosures
 Part Number  11-0210
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 4U 12ATAHDD, 4 x 5.25" BAY Rackmount Network Storage Enclosure Black Rackmount 2U to 4U Enclosures
 Part Number  11-1187
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 4U 12SCSIHDD, 4 x 5.25" BAY Rackmount Enclosure Black Dual Channel Tag Rackmount 2U to 4U Enclosures
 Part Number  11-1188
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

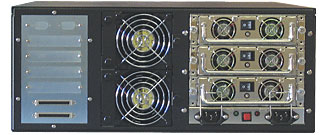

 4U 15ATAHDD, 4 x 5.25" BAY Rackmount Network Storage Enclosure Black Rackmount 2U to 4U Enclosures
 Part Number  11-1190
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 4U 15SCSIHDD, 4 x 5.25" BAY Rackmount Network Storage Enclosure Black Rackmount 2U to 4U Enclosures
 Part Number  11-1191
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 4U 18SCSIHDD, Dual Channel with Tag Rackmount Enclosure Black IDS Jumpered Rackmount 2U to 4U Enclosures
 Part Number  11-1194
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2

 4U 12ATAMAXHDD, 4 x 5.25" BAY Rackmount Network Storage Enclosure Black Rackmount 2U to 4U Enclosures
 Part Number  11-1199
 Weight  60.15 lbs
 Brand  Zippy
 Model#  MPN3-6570F or Equivalent
 Power Supply Quantity  3
 PSU WATTS  3 x 300=900W(max)
 5V (ind.)  25A
 12V (ind.)  17A
 5V (total)  75A
 12V (total)  51A
 PS Fans  6
 Alarms  Yes
 Cooling Fans
 Brand  NMB
 Model#  3110KL-04W-B59
 Qty  2
 Size  80x80x25
 CFM  39
 I / O CUTOUTS
 DB9  2
 SCSI (HD68)  2
 Slot (C50)  4
 ID Slot
 Hardware and Accessories
 Quick Release Screw  4
 Rail Bracket Set  2
 Power Cord  2
^ Top
©1998-2014 PDE Technology, Inc.
All rights reserved. All products are third party products, not original equipment. COMPAQ, PORTEGE, NETFINITY, DELL, NETFINITY, OPTIPLEX, IBM, SUN, TOSHIBA, HP and PROLIANT are trademarked by respective companies. PDE products are not Compaq authorized products.
