Drive Module

and

Hard Drive Kits


For additional information on each product, contact PDE Technology today.


E100 Drive Module Drive module spec sheet for E100 drive integration.
Drive module for E100 hard drive kits
14-1232-04 E100 SCSI/LVD BLACK 1 REM. Drive Module
14-1232-01 E100 SCSI/LVD BEIGE 1 REM. Drive Module
14-1230-04 E100 ATA IBM/HIT/SEA BLACK 1 REM. Drive Module
14-1230-01 E100 ATA IBM/HIT/SEA BEIGE 1 REM. Drive Module
14-1231-04 E100 ATA MAXTOR BLACK 1 REM. Drive Module
14-1231-01 E100 ATA MAXTOR BEIGE 1 REM. Drive Module
14-1429-04 E100 ATA WD BLACK 1 REM. Drive Module
14-1429-01 E100 ATA WD BEIGE 1 REM. Drive Module
14-1229-04 E100 SATA/SERIAL ATA BLACK 1 REM. Drive Module
14-1229-01 E100 SATA/SERIAL ATA BEIGE 1 REM. Drive Module
14-1303-04 E100 FC/FIBRE CHANNEL BLACK 1 REM. Drive Module
14-1303-01 E100 FC/FIBRE CHANNEL BEIGE 1 REM. Drive Module
E300 Drive Module E300 drive module spec sheet for additional information and details.
E300 removable drive module and hard drive kits
14-1179-04 E300 SCSI/LVD BLACK 3 REM. Drive Module
14-1180-01 E300 SCSI/LVD BEIGE 3 REM. Drive Module
14-1197-04 E300 ATA IBM/HIT/SEA BLACK 3 REM. Drive Module
14-1198-01 E300 ATA IBM/HIT/SEA BEIGE 3 REM. Drive Module
14-1224-04 E300 ATA MAXTOR BLACK 3 REM. Drive Module
14-1225-04 E300 ATA MAXTOR BEIGE 3 REM. Drive Module
14-1430-04 E300 ATA WD BLACK 3 REM. Drive Module
14-1430-01 E300 ATA WD BEIGE 3 REM. Drive Module
14-1260-04 E300 SATA/SERIAL ATA BLACK 3 REM. Drive Module
14-1260-01 E300 SATA/SERIAL ATA BEIGE 3 REM. Drive Module
14-1249 E300 FC/FIBRE CHANNEL BLACK 3 REM. Drive Module
14-1428 E300 FC/FIBRE CHANNEL BEIGE 3 REM. Drive Module

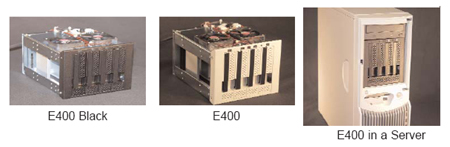

E400 Drive Module Spec sheet for E400 drive module integration and additional information in PDF.
E400 removable hard drive kits with variety of options.
14-1144-04 E400 SCSI/LVD BLACK 4 REM. Drive Module
14-1173-01 E400 SCSI/LVD BEIGE 4 REM. Drive Module
14-1195-04 E400 ATA IBM/HIT/SEA BLACK 4 REM. Drive Module
14-1196-01 E400 ATA IBM/HIT/SEA BEIGE 4 REM. Drive Module
14-1222-04 E400 ATA MAXTOR BLACK 4 REM. Drive Module
14-1223-01 E400 ATA MAXTOR BEIGE 4 REM. Drive Module
14-1431-04 E400 ATA WD BLACK 4 REM. Drive Module
14-1431-01 E400 ATA WD BEIGE 4 REM. Drive Module
14-1259-04 E400 SATA/SERIAL ATA BLACK 4 REM. Drive Module
14-1259-01 E400 SATA/SERIAL ATA BEIGE 4 REM. Drive Module
14-1251 E400 FC/FIBRE CHANNEL BLACK 4 REM. Drive Module
14-1450 E400 FC/FIBRE CHANNEL BEIGE 4 REM. Drive Module
PDE Part #: 14-1004
UPC #: 664880-10065
Drive Module 14-1004 for Compaq Proliant removable hard drive tray.PDE manufactured to fit, older, Compaq Proliant removable hard drive tray. For 3.5" 68 pin wide drives, either 1" or 1/2 ht. Includes tray, covers, and hardware kits. 		PDE Part #: 14-1005
UPC #: 664880-10066
Drive Module 14-1005 includes tray, covers, and hardware kits.PDE manufactured to fit, older, Compaq Proliant removable hard drive tray. For 3.5" SCA 80 pin hard drives, either 1/2 ht or 1". Includes tray, covers, and hardware kits.

PDE Part #: 14-1122 Drive Module specifications
Removable drive module tray for hard drive kits with PDE design for 3.5 inch SCA hard drives.PDE design to be used with 3.5" SCA hard drives. Designed to fit IBM NETFINITY: EXP 10 / EXP 15 Systems. Drives will plug directly into the back plane in the hard drive system.

 PDE Part #: 14-1027
UPC #: 664880-10068
Holds 2 hard drives and comes with dual drive bracket, cables, and Panasonic fan.PDE manufactured to fit mounting kit for IBM RS 6000 500 series systems. Holds 2 3.5" hard drives. Comes complete with dual drive bracket, cables and Panasonic fan.
PDE Part #: 14-1031
UPC #: 664880-10034
Drive module kit faceplate to fit 3.5 inch hard drives.Drive Module 14-1068 to fit 3.5 to 5.25 inch for 3.5 inch hard drive installation.PDE manufactured drive module to fit 3.5" to 5.25" for 3.5" hard disk drives. Comes with bracket, hardware and beige faceplate. For all 3.5" hard drives. Converts drive to fit into a 5.25" bay.

PDE Part #: 14-1032
UPC #: 664880-10032
Drive module 14-1032, hard drive kits to fit 3.5 inch to 5.25 inch drives for 1 inch high removable media drives.PDE manufactured drive module to fit 3.5" to 5.25" for 1" high, removable media drives. Comes with bracket and faceplate with 1" high opening. For floppy drives, Zip or 1" tape drives. Converts drive to fit in a 5.25" hard drive bay.

PDE Part #: 14-1047
UPC #: 664880-10033
Drive Module 14-1047 for hard drive kitsPDE manufactured drive module to fit 3.5" to 5.25" for 3.5" hard disk drives. Comes with bracket and hardware--no faceplate. For all 3.5" hard drives. Converts drive to fit in to a 5.25" hard drive bay.

PDE Part #:  14-1048
UPC #:  664880-10039
Drive Module 14-1048 to fit hard drive mounting kits for 2.5 inch hard drives.PDE manufactured hard drive mounting kits for 2.5" hard drives. Converts any 2.5" IDE hard drives to 3.5" form factor. Converts 44 pin 2mm pitch connector to standard 40 pin .1" pitch header and 4 pin power connectors. Kit includes bracket, hardware and adapter board.

PDE Part #:  14-1612
 Mounting Kit for SATA Notebook Hard Drives2.5" hard drive mounting kits for SATA notebook hard drives. Converts the form factor of any 2.5" SATA hard drive to a 3.5" form factor and Converts the drive connector to a standard SATA data connector and 4 pin power connector. Kit includes bracket, hardware, and adapter cable.
PDE Part #: 14-1059
UPC #: 664880-10040
Drive Module 14-1059 to fit hard drive mounting kits for 1 inch high removable media drive for Apple models.PDE manufactured hard drive mounting kits for 1" high removable media drive for the Apple 7200, 7400, 7600 or G3 desktop computer. Can accommodate 3.5" FDD, Zip, Jaz or 3.5" tape drives. Comes with mounting bracket, bezel and hardware.

PDE Part #: 14-1060
UPC #: 664880-10041
Drive Module 14-1060 as hard drive kits for 1 inch removable drive.PDE manufactured hard drive mounting kits for 1" high removable media drive for the Apple 8600, 9600 or G3 mini tower system. Can accommodate 3.5" FDD, Zip, Jaz or 3.5" tape drives. Comes with mounting bezel and shield.

PDE Part #: 14-1061
UPC #: 664880-10042
Drive Module 14-1061PDE manufactured hard drive mounting kits for 1" high removable media drive for the Apple 8500 and 9500 system. Can accommodate 3.5" FDD, Zip, Jaz or 3.5" tape drive. Comes with bracket, bezel and hardware.

PDE Part#: 14-1068
Drive Kit for 3.5 inch hard disk drivesPDE manufactured to fit 3.5" to 5.25" drive kit for 3.5" hard disk drives. Comes with bracket, hardware and beige and black faceplate. For all 3.5" hard drives. Converts drive to fit in to a 5.25" bay.
PDE Part #: 14-1075A
UPC#: 664880-10085
Drive Module 14-1075PDE manufactured to fit 3.5" HDD Removable Caddy with metal frame, fan and IDE HDD removable shuttle.

PDE Part #: 14-1052
UPC #: 664880-10049
Drive Module 14-1052 to fit removable drive tray for 3.5 inch 68 pin wide hard drive.PDE manufactured to fit removable drive tray for 3.5" 68 pin wide hard drive. Adapts 3.5" 68 pin wide drive to 5.25" form factor and allows for drive to be hot swapped. Kit is all metal with aluminum sides for heat dissipation. Comes with fan, front drive lock and drive activity and power LED's and drive ID LCD.

PDE Part #: 14-1053
UPC #: 664880-10050
Drive Module 14-1053 comes with fan, front drive lock and drive activity, and power LEDs and drive ID LCD.PDE manufactured to fit removable drive tray for 3.5" SCA hard drive. Adapts 3.5" SCA drive to 5.25" form factor and allows for drive to be hot swapped. Kit is all metal with aluminum sides for heat dissipation. Comes with fan, front drive lock and drive activity and power LEDs and drive ID LCD.

PDE Part #: 14-1148 for 1" drives Spec sheet for PDE manufactured removable drive tray.
PDE Part#: 14-1150 for 1.6" drives Additional information in the PDF spec sheet on drive module integration.
Removable Drive Tray for HP LH3/4 NetserverPDE manufactured to fit removable drive tray for the HP LH3/4 Netserver. Accommodates Ultra 2 hard drives. The tray comes in 1" low profile and 1.6" half height versions. The Netserver has a 6 drive hot swap storage cage and drives of different height may be mixed and matched within the storage cage. Disk spacers, a filler panel between one drive and an adjacent drive, comes with each drive kit. Disk spacers, may be needed when mixing low profile and standard half height in the storage cage.
PDE Part #:  14-1087 Spec sheet on drive module products and further details.
Removable Drive Module Tray for 3.5 inch SCA Hard DrivesPDE design to be used with 3.5" SCA hard drives. Designed to fit IBM NETFINITY: 5000, 5500, 7000 Systems. Drives will plug directly into the back plane in the system. 		PDE Part #:  14-1221-11
3.5 inch Hard Drive Tray for E100, E300, E400, and various rackmount enclosures3.5" HDD Tray - Beige Color
Fits PDE E100, E300, E400 and various rackmount enclosures.
PDE Part #:  14-1221-14
3.5 inch Hard Drive Tray for various enclosures3.5" HDD Tray - Black Color
Fits PDE E100, E300, E400 and various rackmount enclosures. 		PDE Part #:  14-1281-04
3.5 inch Hard Drive Tray for E302, E304, E305, and various 1U and 3U rackmount enclosures3.5" HDD Tray - Black
Fits E302, E304, E305 and various 1U and 3U rackmount enclosures.
