Part No: 11-0426

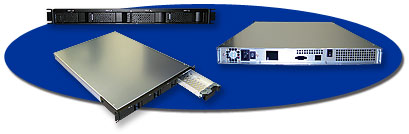

1U 4 Drive Enclosure1u 4 drive enclosure

• Compact 1U Form Factor
• 4 removable SATA drive bays
• Industrial cooling and power
• Backpanel Cutout for GigaStorATX
• Includes mounting hardware
• Direct connect drive engagement




 2u 8-9 drive enclosure                                                                                                   Part No: 11-0243

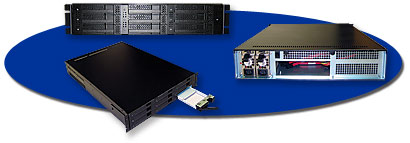

2U 8-9 Drive Enclosure

• 2U Form Factor
• 8 or 9 removable SATA drive bays
• Industrial cooling
• Removable power supplies
• Universal backpanel cutout for GigaStorATX
• Includes mounting hardware
• Direct connect drive engagement





Part No: 11-0425

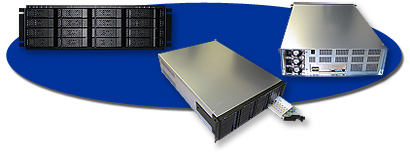

3U 16 Drive Enclosure3u 16 drive enclosure

• 3U Form Factor
• 16 removable SATA drive bays
• Industrial cooling
• Removable power supplies
• Universal backpanel cutout for GigaStorATX
• Includes mounting hardware
• Direct connect drive engagement




turnkey integrated solutions
Flexibility • Value • High Performance • Windows | MAC | Linux

  • Media Protection, Caching, Redundancy, End-to-End, Data Protection, & RAID.
    E-mail & LED status/failure notification
  • Supports write-back, write-through, write-coalescing, multistream read ahead.
    IP SAN Device Manager for remote configuration & monitoring
  • Protection from power loss via on-board battery to store cache memory
  • VLAN Zone for access security
  • Complete iSCSI RAID Storage Solutions for OEMs, VARs, and System Integrators
  • Ethernet LAN network & Microsoft Initiator 2.0 to avoid high price host adaptor and switches
  • RAID 0, 1, 5, 10 & JBOD configuration
  • Customize up to 16 Serial ATA Disk Channels, max 12 TeraByte of data storage
  • Scalable On-Line expansion
iSCSI Internal Enclosure imageTurnkey Integrated Solutions
Part Numbers
4 Drive 4 Port: iSCSI1U44P
4 Drive 8 Port: iSCSI1U48P
8 Drive 4 Port: iSCSI2U84P
8 Drive 8 Port: iSCSI2U88P
9 Drive 4 Port: iSCSI2U94P
9 Drive 8 Port: iSCSI2U98P
16 Drive 4 Port: iSCSI3U164P
16 Drive 8 Port: iSCSI3U168P


860MB/s=8 port 1GbE | 1160MB/s=10GbE | Full iSCSI Storage Controller | 42 software features

*PDE, the oval device, Storage Support Solutions and Pro Drive Enhancement are trademarks of PDE Technology Corp
iSCSI Rackmount Specifications
                                 1U 4 Drive Enclosure2U 8-9 Drive Enclosure3U 16 Drive Enclosure
Model 1U 4 Drive Enclosure 2U 8-9 Drive Enclosure 3U 16 Drive Enclosure
Part Number 11-0426 11-0243 11-0425
Dimensions (inches)
Length 25.38" 25.38" 25.38"
Width 17.25" 17.13" 17.25"
Height 1.75" 3.50" 5.25"
Weight (lbs) 22.90 lbs 34.10 lbs 54.10 lbs
Power Supply
Brand Zippy Zippy Zippy
Model Number P1U-6200P R2G-6350P R3G-6650P
Modules 1 2 (Redundant) 3 (Redundant)
Watts (max) 200 350 650
+5V 16A 35A 60A
+12V 9A 22A 40A
+3.3V 14A 20A 40A
P/S Fans 1 2 3
Alarms No Yes Yes
Cooling Fans
Brand Adda Adda Adda
Model Number AD0412HB-B31 AD0812MB-A70GL AD1212HB-A71GL
Quantity 3 3 2
Size 40x40x28 80x80x25 120x120x25
CFM 12.2 32.9 85.2
Hardware
Bracket Set 2 2 2
Power Cord 1 2 3
Warranty 1 Year 1 Year 1 Year
ACCESSORIES
PART NUMBER ITEM
GSAX014 4 CELL Battery 1U
GSAX016 6 CELL Battery 2U
20-0051 Memory 256MB
ISN-96-0007 I/O Backplate 4p
ISN-96-0006 I/O Backplate 8p
14-1281-04 Spare Drive Tray 1U, 3U
14-1221-14 Spare Drive Tray 2U
14-1584 Spare Power Module
14-1300 Rack Rail Kit
29-0633 CAT5E EXT Cable 3'
29-0635 CAT5E EXT Cable 5'
29-0637 CAT5E EXT Cable 7'
29-0640 CAT5E EXT Cable 10'

GigaStorATX iSCSI Board 1Gbe & 10 GbE
iStor GigaStorATX iSCSI Board (1GbE & 10GbE)
PART NUMBER ITEM
20-0038 4 Port 8 Drive
20-0037 4 Port 16 Drive
20-0041 8 Port 16 Drive
20-0050 10 GbE 16 Drive
* Specifications subject to change. Alternative parts may be used.
iSCSI GigaStorATX Spiral Performance
iSCSI GigaStor Spiral Performance

iSCSI GigaStor Spiral Performance
  Charts provided by iStor Networks Inc.®
  iStor logo and GigaStorATX is a trademark of iStor Networks Inc.®
