Hard Drive Enclosure

Fibre Channel - SAS - Mini-SAS - SATA - Firewire - USB - SCSI

For additional information on each product, contact PDE Technology today.

PDE PART #:

11-1038: Wide TPO

-1072: Narrow HD50

-1093: Wide TPO, Black

-1058: FC Dual Loop

    -1098: USB2 HDD
    -1055: Narrow C50 1394-ATA
    -1092: FC Single Loop
    -1094: Wide VHDCI

Model #: E101

E101 3.5" SCSI/FIBRE CHANNEL/1394/LVD provides an external housing solution for a 3.5" hard drive with power, cooling and interface. Turnkey solution includes: Dedicated bezel for drive, data cables and SCSI id, drive mounting hardware, black or beige, convenient id switch mounted on back panel, snap out front bezel, "Easy" mount drive bracket, 60 mm fan for superior cooling, covered power supply reduces interference.

PDE PART #:

11-1018: 3.5” Hard Drive Wide

-1020: 3.5” REM. Media Wide

-1022: Universal Distribution (Hard Drive, CD, Tape, Bezels Inc.)

    -2007: CD w/ HD50 I/O
    -1019: CD w/C50 I/O
    -1021: 3.5” REM. Media Narrow (1” or 1/2 height)
    -1023: 5.25” TAPE DRIVE

UPC#: 664880-1020561
Model #: E301

E301: SCSI enclosure provides an external housing solution for a 5.25" or 3.25" hard drive. Stackable and convertible. All drive types stack with universal footprint and enclosures can be mounted vertically or horizontally.

PDE PART #:

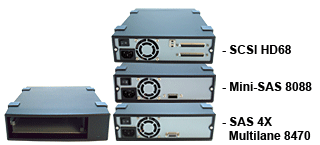

11-0695: E301 LTO 4 Enclosure
(SAS 4X Multilane 8470, Black)

11-0696: E301 LTO 4 Enclosure
(SCSI (HD68), Black)

11-0697: E301 LTO 4 Enclosure
(Mini-SAS 8088, Black)

Model #: LTO 3/LTO 4 Tape Drive E301 Enclosure
Provides an external housing solution for a 5.25" LTO Tape Drive. Turnkey solution offers a dedicated bezel for drive, data cables, and drive mounting hardware. This unit contains a first tier covered power supply and fan. Contemporary designs include a rear mounted power switch and internal autoswitching power supply; available in black and custom colors are optional. The available interfaces are SCSI HD68, Mini-SAS 8088, and SAS 8470. Tape Drive Enclosure

PDE PART #:
11-0360: SCSI Wide, 2 x 3.5" SCA Rem HDD's, 2 x HD68 I/O
    -0363: Fibre Channel SL, 2 x 3.5" Rem HDD's, DB9 I/O
    -0364: Fibre Channel SL, 2 x 3.5" Rem HDD's, SFP Optical I/O
    -0369: Firewire 800 / 1394 B, 2 x 3.5" Rem ATA Drives IND. Vol
    -0388: Firewire 800 / 1394 B, 2 x 3.5" Rem ATA Drives Striped
    -0427: SAS, 2 x 3.5" SAS Rem HDD's
    -0429: USB2, 2 x 3.5" Rem ATA HDD's IND. Volumes
    -0504: SATA, 2 x 3.5" SATA Rem HDD's, 2 x eSATA I/O
    -0504-ML: SATA, 2 x 3.5" SATA Rem HDD's, Multilane I/O
11-0504-MS: Mini-SAS, 2 x 3.5" SATA Rem HDD's, Mini-SAS I/O
11-0504-MS-LT: Mini-SAS, 2 x 3.5" SATA Rem HDD's w/ Locking Drive Trays, Mini-SAS I/O

Model #: E302
E302: External housing solution for removable 3.5" hard drives with power, cooling, and interface. Provides turnkey data solutions, first tier power supply and fan, contemporary designs with custom OEM options such as custom colors, silk screen, custom printed packaging, and bulk OEM pack. Maximum configuration for SCSI, Fibre Channel, Firewire/1394, USB, SATA/eSATA, and SAS. Exceeds requirements for 15,000 RPM and LVD drives.

PDE PART #:
11-0655: E302-Mirror
11-0656: E302-Mirror (with Locking Door)
Model #: E302-Mirror
E302: External housing solution for removable 3.5" hard drives with power, cooling, and interface. Provides turnkey data solutions, first tier power supply and fan, contemporary designs with custom OEM options such as custom colors, silk screen, custom printed packaging, and bulk OEM pack. High performance for bridging between SATA disks and USB 2.0, FireWire 400, and FireWire 800 (DSB only). Exceeds requirements for 15,000 RPM and LVD drives.
RAID:
• Mirroring: Writes the same data to both disks, so that data may be recovered in the event of one drive failing

PDE PART #:
11-0310: SCSI Wide, 4 x 3.5" SCA Rem HDD's, 2 x HD68 I/O
    -0313: Fibre Channel SL, 4 x 3.5" Rem HDD's, DB9 I/O
    -0317: Fibre Channel SL, 4 x 3.5" Rem HDD's, SFP Optical I/O
    -0359: Firewire 800 / 1394 B, 4 x 3.5" Rem ATA Drives IND. Vol
    -0398: Firewire 800 / 1394 B, 4 x 3.5" Rem ATA Drives SPAN
    -0400: Firewire 800 / 1394 B, 4 x 3.5" Rem ATA Drives Striped
    -0428: SAS, 4 x 3.5" SAS Rem HDD's, Multilane I/O
    -0430: USB2, 4 x 3.5" Rem ATA Drives IND. Vol
    -0505: SATA, 4 x 3.5" SATA Rem HDD's 4 x eSATA I/O
    -0505-ML: SATA, 4 x 3.5" SATA Rem HDD's, Multilane I/O

11-0505-MS: Mini-SAS, 4 x 3.5" SATA Rem HDD's, Mini-SAS I/O

11-0505-MS-LT: Mini-SAS, 4 x 3.5" SATA Rem HDD's with Locking Drive Trays, Mini-SAS I/O
Model #: E304

E304: External housing solution for removable 3.5" hard drives with power, cooling, and interface. Provides turnkey data solutions, first tier power supply and fan, contemporary designs with custom OEM options such as custom colors, silk screen, custom printed packaging, and bulk OEM pack. Maximum configuration for SCSI, Fibre Channel, Firewire/1394, USB, SATA/eSATA, and SAS. Exceeds requirements for 15,000 RPM and LVD drives.

PDE PART #:
11-0404: SCSI Wide, 5 x 3.5" SCA Rem HDD's, 2 x HD68 I/O
-0406: Fibre Channel SL, 5 x 3.5" Rem HDD's, DB9 I/O
-0558: SATA, 5 x 3.5" SATA Rem HDD's / Port Multiplier
Model #: E305
E305: External housing solution for removable 3.5" hard drives with power, cooling, and interface. Provides turnkey data solutions, first tier power supply and fan, contemporary designs with custom OEM options such as custom colors, silk screen, custom printed packaging, and bulk OEM pack. Maximum configuration for SCSI, Fibre Channel, Firewire/1394, USB, SATA/eSATA, and SAS. Exceeds requirements for 15,000 RPM and LVD drives.

PDE PART #:
11-1001: Beige
11-1027: Black
UPC #: 664880-10052
Model #: E501

E501Wide: Half height hard drive enclosure accommodates a wide hard drive or removable media device. Comes with redundant cooling, 2 fans-60 x 60 mm each, 40 watt covered power supply, wide TPO data cables, 15 position SCSI ID and cable. Bezel with drive activity LED.

PDE PART #:
11-1002: Beige
11-1054: Black
UPC #: 664880-10051
Model #: E501

E501 Narrow: Half height enclosure accommodates a narrow (50pin) drive such as a CD Rom, or CD Recorder, or 3.5" narrow hard drive. Comes standard with 40 watt covered power supply, 60 X 60 mm fan, Centronics narrow data cable, SCSI ID switch and cable, audio jacks with a triple option drive connector, and both open and closed bezels.

PDE PART #: 11-1005
UPC #: 664880-10054
Model #: E502

E502 Wide: Full height hard drive enclosure for wide devices. Holds one full height or two half height wide drives. Comes with a covered 65 watt auto switching power supply, wide TPO data cable, 15 position SCSI ID’s and cables for two drives. 80 X 80 mm fan. Includes 2 half height faceplates with drive activity LED’s.

PDE PART #: 11-1014
UPC #: 664880-10091
Model #: E502
E502 Narrow: Full height hard drive enclosure, dual drive/ c-50 Full height enclosure for narrow devices. Holds one full height or two half height narrow drives. Comes with a covered 65 watt auto switching power supply, data cable, 7 position SCSI ID’s and cables for two drives. 80 X 80 mm fan. Includes 2 half height faceplates with drive activity LED’s.

PDE PART #: 11-1010
UPC #: 664880-10087
Model #: E502

E502 Narrow: Full height hard drive enclosure, HD 50, dual drive. Full height enclosure for 2 narrow drives. Comes with a covered 65 watt power supply, 80mm fan, audio jacks, HD50 I/O, and 1/2 removable faceplates.

PDE PART #:
11-1012: Beige
11-1028: Black
UPC #: 664880-10089
Model #: E502DLT

E502DLT: Full height enclosure for wide DLT drives. Holds one full height drive. Comes with a covered 65 watt auto switching power supply, wide TPO data cable, 15 position SCSI ID and cable. 80 X 80 mm high volume fan.

PDE PART #: 11-1011
UPC #: 664880-10088
Model #: E502W3

E502W3: Full height enclosure, wide SCSI, 3 drive/HDD. Full height enclosure for wide devices. Holds one full height or three 3 1/2" half height wide drives. Comes with a covered 65 watt auto switching power supply, wide TPO data cable, 15 position SCSI ID’s and cables for three drives. 80 X 80 mm high volume fan. Includes 2 half height faceplates with three drive activity LED’s.

PDE PART #: 11-1013
UPC #: 664880-10090
Model #: E502W5

E502W5: Full height enclosure for wide devices. Holds one full height or 5 LP hard drives or 3 half height wide hard drives. Comes with a covered 65 watt auto switching power supply, wide TPO data cable, 15 position SCSI ID’s and cables for two drives. 80 X 80 mm high volume fan. Includes 2 half height faceplates with five drive activity LED’s.

PDE PART #: 11-1006
UPC #: 664880-10055
Model #: E505

E505 Narrow: Accommodates 3.5" or 5.25" form factor narrow drives. Comes with 250 watts of power, narrow 50 pin data cable, 5 pieces 7 position SCSI ID switches, 2 80 x 80 fans. Includes 5half height faceplates with drive activity LED’s.

PDE PART #: 11-1007
UPC #: 664880-10056
Model #: E505

E505 Wide: Accommodates 3.5" or 5.25" form factor wide drives. Comes with 250 watts of power, wide 68 pin TPO data cable, 5 pieces 15 position SCSI ID switches, 2 80 X 80 mm fans. Includes 5 half height faceplates with drive activity LED’s.

PDE PART #: 11-1008
UPC #: 664880-10057
Model #: E509

E509 Narrow: Accommodates 3.5" or 5.25" form factor narrow drives. Comes with 300 watts of power, narrow 50 pin data cable,9 pieces 7 position SCSI ID switches, 2 80 X 80 mm fans. Includes 9 half height faceplates with drive activity LED’s.

PDE PART #: 11-1009
UPC #: 664880-10058
Model #: E509

E509 Wide: Accommodates 3.5" or 5.25" form factor wide drives. Comes with 300 watts of power, wide 68 pin data cable, 9 pieces 15 position SCSI ID switches, 2 80 X 80 mm fans. Includes 9 half height faceplates with drive activity LED’s.
