E501 Product Sheet

E501 External Housing

Provides an external housing solution for a 3.5" or 5.25" drive

Turnkey Solutions Include:

  • Removable hard drive bezel with LED
  • Data cables and SCSI id
  • Quick Mount Drive Mounting Hardware
  • Highest Quality on the Market
  • PDE is ISO 9001:2000 certified
  • 1 year warranty
  • Contemporary Design
  • Available in Redundant Cooling
  • Designed to exceed requirements for 15,000 RPM and LVD drives

Cooling System

  • 1 or 2 60 x 60 x 25mm cooling fans
  • 2 fans provide N + 1 redundant cooling
  • Exceeds 15,000 RPM drive requirements
  • Conductive cooling mounting plates
Specs:
Size 60X60X25mm
Air Flow 17.6 CFM each
RPM 3800
Power 1.56 watts each
  • UL, CSA, TUV approved
  • 4 pole DC motor design
  • Locked rotor protection

Power System

1 40 watt typical / 56 watt peak auto sensing power supply

SPECS:

  • Input: 100-240 VAC auto sensing
  • Size: L-178.5mm; W-51m; H-32.78mm
  • mtbf 60,000 hours at full load (25°C)
  • Short circuit protection with auto recovery
  • Over voltage protection with auto recovery
  • UL, CSA, approved

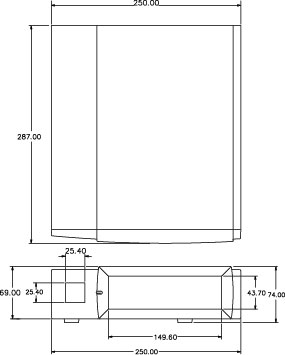

E501 External Housing diagram

Output Voltage
Min
Typical
Peak
Tolerance
Rippled Noise
Regulation
Line
Regulation
Load
+5v
.0A
3.0A
4.0A
2%
50mv
1%
2%
+12v
.0A
2.0A
3.0A
10%
120mv
2%
10%

Testing Procedures

HI Pot, Ground, Continuity, Cosmetic, Electrical, Voltage, Power Supply with load, Cooling System, Functionality, Mechanical

Part Numbers for Model E501

  • 11-1001 wide model includes redundant cooling, TPE data cable, wide id
  • 11-1002 narrow model includes audio jacks, data cable, narrow id and cable
  • Other configurations available, delayed start drive function must be used in multi-drive models.

Spare Parts

Power Supply 25-1066
Fan 25-1004
HDD Bezel 22-1019
Wide (68 pin) data cable 29-0036
Wide SCSI ID Kit 14-1065
Narrow SCSI ID Kit 14-1066
Audio Jack Kit 14-1067
Bezel w/11x25.5mm(logo indent) 22-1015
Foot Kit for vertical mount 14-1064
3.5" removable media drive mounting kit 14-1032
Narrow (50P) data cable 29-0066
68 pin active terminator 14-1041
68 pin LVD mm terminator 14-1025
50 pin active terminator 14-1045
3' external cable HD68m-HD68m 29-0040
3' external cable HD68m-UHDCI68m 29-0098
3' external cable HD68m-HD50 29-0095
3' external cable C50-C50m 29-0106
Weight 8 lbs each with packaging Master Carton of 4 pieces is 34.1 lbs OEM/Bulk Packaging is available.
